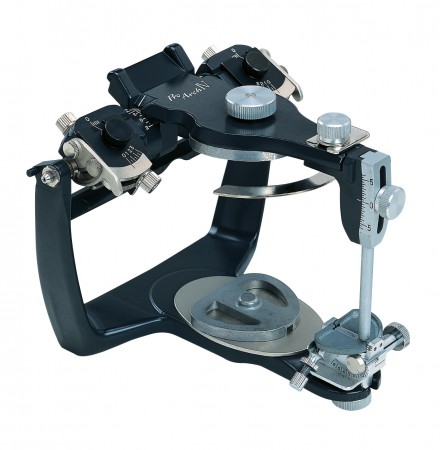

Pro Arch Articulator IV

ProArch IV is an arcon-type, top end semi-adjustable articulator with an additional immediate side shift adjustable system that provides easy comprehension of patient’s natural jaw movement and excellent handling properties for precise fabrication of elaborate dental prostheses.


The Twin-Plate mechanism at the condylar guidance combines the benefits of both box and slot types. In denture fabrication, this mechanism prevents condylar guidance and ball from being disengaged in the eccentric position to provide an accurate occlusion.

  • Pro Arch IV type articulator has the angle adjustment structure for working side lateral condylar path (Bennett angle), as well as for balancing side lateral condylar path, that enables adequate lateral check bite registration.
  • The inverted-type adjustment feature makes the condylar path adjustment easy and accurate.
  • The angle of sagittal condylar path remains unchanged by the range of motion on this arcon-type articulator.
  • Pro Arch IV articulator is the only one of the Pro Arch series which features the immediate side shift adjustable system.
  • The Incisal Table can be selected from either the adjustable Incisal Table or resin block to suit individual cases.
  • The adjustment area of Incisal Pin has a shape of an arc centered on the Condylar Ball. Therefore, the position of the Incisal Pin and Table remain unchanged even if the distance between upper and lower jaws is changed.
  • Incisal and Condylar Guidance have sufficient adjustment range equivalent to human jaw.
  • The strong Centric Lock system ensures accurate centric registration.
  • Die-cast framework is lightweight with high precision while its robust structure is free from flexure and the resin coating provides a durable surface finish.
  • Upper and lower jaws are easily separated. Upper jaw can be opened up to 120° for easy access.
  • Individually packed with Metal Mounting Plate, Reference Indicator , Adjustable Incisal Table, Adjustable Incisal Rod, Resin Block and Incisal Rod for Resin Block.
    Type Arcon Type
    Distance between condyles 110mm
    Distance between upper and lower jaws 110mm
    Maximum opening angle 120º
    Condylar Guidance Structure Twin-Plate Structure (Condylar Upward Guide Plate and removable Condylar Downward Guide Plate)
    Condylar path adjusting system Angle of sagittal condylar path -20º – +80º
    Angle of balancing side lateral condylar path (Progressive side shift) 0º – 30º
    Immediate side shift 0 – 4mm
    Angle of working side lateral condylar path -30º – +30º
    Incisal path adjusting system (adjustable incisal table) Angle of sagittal incisal path -10º – +75º
    Angle of lateral incisal guidance 0º – 50º
    Incisal pin adjusting range -6º – +6º
    Adjustable table moving distance
    (lower cast mounting ring 2-position adjustable system)
    Mounting / removal of cast Mounting Ring (MSMP can be also used)
    Face Bow transfer mechanism With Ear Lowcation Pin
    Condylar Ball Rod with a hole on the front edge
