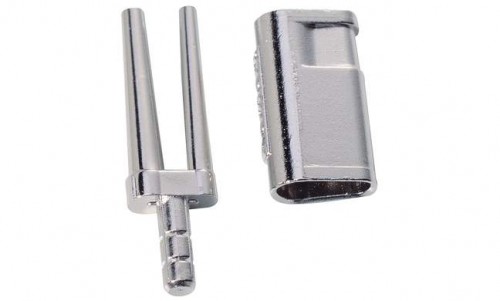

Bi-V-Pin with metal sleeve

csm_328xxxx_PROD_001_be237016e1

Bi-V-Pin with metal sleeve – The V-Profil

Function & Performance
Narrow model pin with two dowel pins, ideal for positioning in limited space.

Advantages

  • V-shaped profile also ideal when limited space is available.
  • Only one hole drilled per die.
  • Reduced production time of the model.

328xxxx_ANWEND_001.tif
